架高SIM卡座

H: 3.3mm

H: 3.6mm

H: 3.8mm

Products summary

1. Electrical characteristics::

  A. Voltage Rating: 12VAG

   B. Current: 1 Amperes Max. Rer Contact

   C. Operation Temperature Range: -25°C

        ~+70°C

   D. Contact Resistance: 60MΩ MAX.

   E. Insulation Resistance: 1000MΩ MIN.

   F. Dielectric Withstanding Voltage: 500V

       Ac For 1 Minute.

   E. Max. Processing Temp: 260°C for 30

         Seconds

2.MATERIAL AND FINISH:

  A. HOUSING: THERMOPLASTIC UL94V-0

       COLOR: BLACK.

  B. CONTACT: COPPER ALLOY  T=0.15

  C. SHELL:  STAINLESS STEEL T=0.2mm

  D.  PLATING:

        1. Contact finish: 50u” min, Nickel Under

            Plated, Plated 3u” Au On Contact Area ;

            Plated Gold Flash On Solder Area.

        2. Shell Finish:  50u” Min, Nickel Under Plated,

            Plated Gold Flash On Solder Area.

L/T:5Week

P/N:R-SIM-F0XXXNO

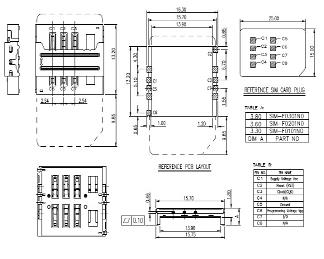

Drawings
