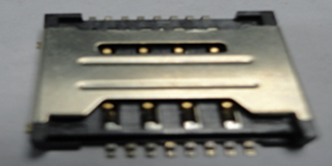

雙層SIM卡座





Products summary

1. Electrical characteristics::

  A. Operating voltage: 250V(AC/DC).

   B. Current rating: 1AMP MAX.

   C. Operating temperature: -20°c~85°c.

   D. Insulation resistance: 1000M ohme

      min, at 250DC.

   E. Dielectric withstanding voltage: 500VAC/

        1minute.

   F. Contact resistance: 40m ohms max.



2.MATERIAL AND FINISH:

  A. HOUSING: LCP UL 94-V0 COLOR:

       BLACK.

  B. CONTACT: PHOSPHOR BRONZE

  C. SHELL:  STAINLESS STEEL T=0.15

  D.  PLATING:

        Under plate: 50u” Nickel OVER ALL,

        Contact area: 3u” Gold.

        Solder tails area: 1u” Gold.

L/T:5Week

P/N:R-SIM-003XXNO

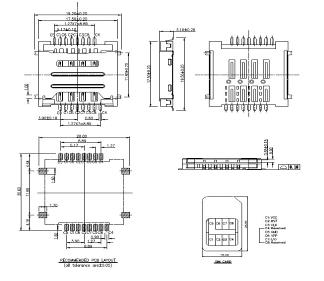

Drawings
