D-SUB CABLE (Adapter) |
|
CABLE: D-SUB 9PIN(M) TO USB A(M) ADAPTER: D-SUB 9P(F) TO D-SUB 25P(M) |
Products summary |
|
NOTE:
1. D-SUB 9P(M)<=>USB A TYPE (M) D-USB 9P(F)<=> D-USB 25P(M)
2. CABLE:28AWG *4C+28 OD:4.5mm (BLACK)
TEST 1. OPEN & SHORT TEST. 2. CONNECT RESISTANCE: 3ohm MAX.. 3. INSULATION RESISTANCE: 10M ohm MIN. 4. Hi-Pot:300V DC/ms. |
|
L/T:4Week |
|
P/N: AA-SUB-70119 |
|

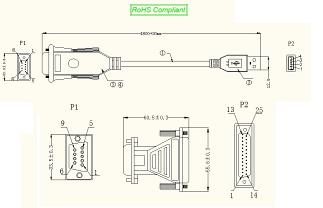

Drawings |
|
