SAS Cable |
|
MINI SAS 36PIN TO 2 x SAS29PIN (L:500mm) + POWER 8PIN (L:300mm)
|
Products summary |
|
NOTE:
1. Mini SAS 36PIN <=> 2 x SAS 29PIN + POWER 8PIN 2. CABLE:(2C*30#+AL+2D) *2 OD:1.85*5.8mm PANTON 200C 3. CABLE:18AWG BLACK、 YELLOW、RED.
TEST 1. OPEN & SHORT TEST. 2. CONNECT RESISTANCE: 1ohm MAX. 3. INSULATION RESISTANCE: 5M ohm MIN. 4. Hi-Pot:300V DC/ms. |
|
L/T:4Week |
|
P/N: AA-SAS-410301-005-S |
|

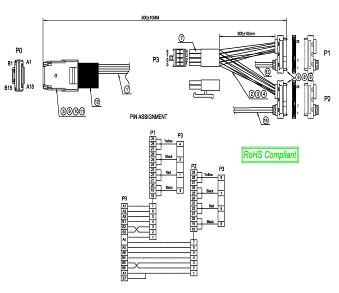

Drawings |
|
