SATA Cable |
|
SATA 7+6PIN TO SATA 7PIN + POWER 8PIN
|
Products summary |
|
NOTE:
1. SATA 7+6PIN (F)<==> SATA 7PIN + POWER 8PIN 2. CABLE:(2C*26AWG+AL+28D) *2C FLAT CABLE OD2.2*7.8mm COLOR: RED 3. CABLE:20AWG OD 1.6 BLACK、RED.
TEST 1. OPEN & SHORT TEST. 2. CONNECT RESISTANCE: 1ohm MAX.. 3. INSULATION RESISTANCE: 5M ohm MIN. 4. Hi-Pot:300V DC/ms. |
|
L/T:4Week |
|
P/N: AA-SATA-400120-0040-R |
|

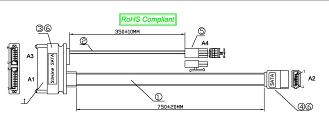

Drawings |
|
