POWER CABLE |
|

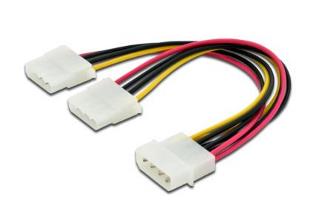

POWER 4PIN (M)TO 2*POWER 4PIN (F) |
Products summary |
|
NOTE:
1. POWER 4P(M)<=> 2*POWER 4P(F)
2. CABLE: 18AWG COLOR:YELLOW & BLACK & RED
TEST 1. OPEN & SHORT TEST. 2. CONNECT RESISTANCE: 3ohm MAX.. 3. INSULATION RESISTANCE: 20M ohm MIN. |
|
L/T:4Week |
|
P/N: AA-ATX-430400-00X-M |
|

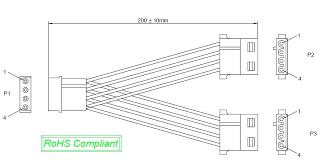

Drawings |
|
