IDC(HDD) CABLE

IDC 40PIN (F) TO IDC 40PIN (M) BLACK



Products summary

NOTE:



1. IDC 40P(F) <=> IDC 40P(M)BLACK WITH

     KEY

2. CABLE:28AWG(7/0.12TC)*40C OD:1.27PITCH *0.9 JACKET (GREY)



TEST

1. OPEN & SHORT TEST.

2. CONNECT RESISTANCE: 2ohm MAX..

3. INSULATION RESISTANCE: 10M ohm

     MIN.

4. Hi-Pot:300V DC/ms.

L/T:4Week

P/N: AA-IDC-570200-002-E

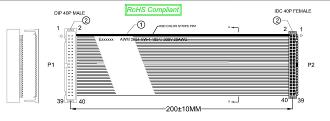

Drawings
