SATA Cable |
|
SATA 7+15(M) TO SATA 7+15(F)
|
Products summary |
|
NOTE:
1. SATA 7+15PIN (M) <=> SATA 7+15PIN(F) 2. CABLE:[26AWG(1/0.404TC)*2F+AL/MY+ D28AWG(1/0.32TC*2C] *2C OD:2.2*0.78 JACKET COLOR:RED 3. CALBE: 18AWG(34/0.17TC)*1C OD=2.0 JACKET COLOR:BLACK,RED,YELLOW
TEST 1. OPEN & SHORT TEST. 2. CONNECT RESISTANCE: 2ohm MAX.. 3. INSULATION RESISTANCE: 10M ohm MIN. 4. Hi-Pot:300V DC/ms. |
|
L/T:4Week |
|
P/N: AA-SATA-400121-003-R |
|

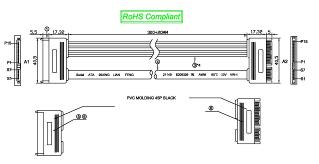

Drawings |
|
