IC SOCKET (122) |
|
IC Socket Strips- with Screw machined pins Wire Wrap Termination - Strips type Tin/ gold - Standard 4 finger Clip Contacts |
Products summary |
|
ELECTRICAL: Current rating:3.0Amps/Contact MAX Contact resistance:4mΩ/ Contact MAX Insulation resistance:1000MΩ at V=100V MIN Operating voltage:60V AC/DC
MECHANICAL Operating temperatures: Gold plated:-40°C to +105°C Soldering Temperature:+240°C,10S MAX
Material PIN: Brass,machined CLIP: Beryllium Copper Plating(PIN):50u" Ni,200u" Sn Plating(Clip):50u" Ni,GOLD FLASH Insulator body(Black):PPS or other(UL94V-0) |
|
L/T:4Week |
|
P/N:R-122-XXX-XXX-XXX |
|

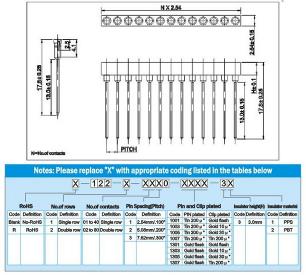

Drawings |
|
