IC SOCKET 2.54mm(100) |
|
Dual-line IC Socket - with screw machined pins Open Frame - Standard Solder tail tin/gold - standard 4 finger clip contacts |
Products summary |
|
ELECTRICAL: Current rating:3.0Amps/Contact MAX Contact resistance:4mΩ/ Contact MAX Insulation resistance:1000MΩ at V=100V MIN Operating voltage:60V AC/DC
MECHANICAL Operating temperatures: Gold plated:-40°C to +105°C Soldering Temperature:+240°C,10S MAX
Material PIN: Brass,machined CLIP: Beryllium Copper Plating(PIN):50u" Ni,200u" Sn Plating(Clip):50u" Ni,GOLD FLASH Insulator body(Black):PPS or other(UL94V-0) |
|
L/T:4Week |
|
P/N:R-100-XXX-XXX-XXX |
|

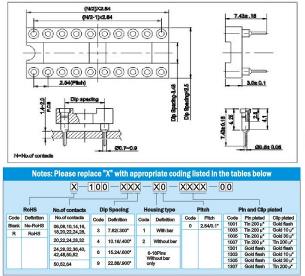

Drawings |
|
