E-SATA CABLE

E-SATA TO E-SATA

Products summary

NOTE:



1. E-SATA(M)<=> E-SATA(M)



2. CABLE:(2C*26AWG +2D+AL+MYLAR+B)

    *2C OD;2.8*8.5(BLACK)



TEST

1. OPEN & SHORT TEST.

2. CONNECT RESISTANCE: 2ohm MAX..

3. INSULATION RESISTANCE: 10M ohm

     MIN.

4. Hi-Pot:300V DC/ms.

L/T:4Week

P/N: AA-EST-4001XX-00X-S

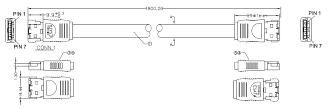

Drawings
