Pin Header 1.778mm(127)

Adapter Strips - with screw machined pins

High Density Strip

Single or double row - solder tail - standard 4 finger clip contacts

Products summary

L/T: 4 Week

P/N:R-127-XXX-XXX-XXX

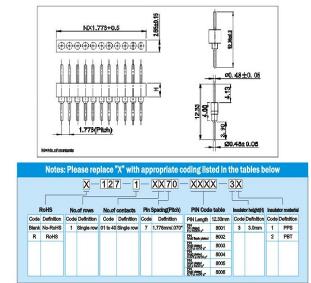

Drawings

1.MATERIALS:



 1-1.Insulator:Polyester UL94V-0.

 1-2.Contact:Brass.

 1-3.Plated:Plated(see table)OVER Ni.



2.ELECTRICAL CHARACTERISTICS:



 2-1.Current Rating:3 Amp.

 2-2.Voltage Rating:250V AC/DC.

 2-3.Contact Resistance: 20 mOhms MAX.

 2-4.Insulation Resistance:1000 MOhms MIN.

 2-5.Withstanding Voltage: 500V AC/MINUTE.

 2-6.Operation Temperature:-25°C~+105°C.
