USB CABLE

USB A(M) TO MICRO USB B(M)

Products summary

NOTE:



1. USB A(M)<=> MICRO USB B(M)



2. CABLE:28AWG *4C+28 OD:4.5mm

    (BLACK)



TEST

1. OPEN & SHORT TEST.

2. CONNECT RESISTANCE: 3ohm MAX..

3. INSULATION RESISTANCE: 10M ohm

     MIN.

4. Hi-Pot:300V DC/ms.

L/T:4Week

P/N: AA-USB-3001XX-00X-S

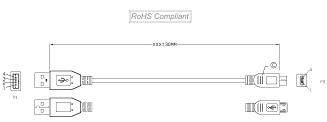

Drawings
