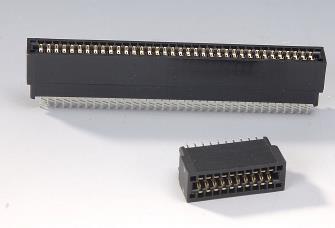

SLOT 180º DIP(98P) |
|
SLOT 180ºDIP 98PIN PBT BRASS CARD EDEG Pitch:2.54 |
Products summary |
|
L/T: 4 Week |
|
P/N:R-ISA-XXX-098-XXX |
|
Drawings |
|
MATERIALS
INSULATOR:PBT WITH 30% G.F UL94-V0, COLOT:BLACK(PBT) CONTACT:BRASS C2680-EH t=0.3mm PLATING:MATING AREA - SELECTED GOLD OVER NICKEL.SOLDER AREA-TIN OVER NICKEL.
ELECTRICAL
VOLTAGE RATING: 1000 VAC CURRENT RATING: 3 AMP INSULATION RESISTANCE: 5000 MEGOHMS MIN CONTACT RESISTANCE: 20 MILLIOHMS MAX
MECHANICAL INSERTION FORCE: 340 GRAMS MAX PER CONTACT PAIR. WITHDRAWAL FORCE:28GRAMS MIN PER CONTACT PAIR. ENVIRONMENTAL TEMPERATURE RANGE:-55º TO +85º |
|
