RJ 45 (HLE50020&HLE50024)

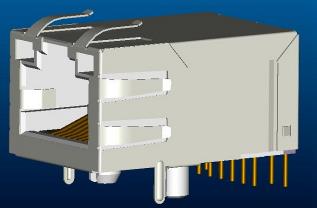

RJ 45 1x1 PORT With LED (Transformer)

STD / RVS

Products summary

L/T: 4 Week

P/N:HLE50020 & HLE50024

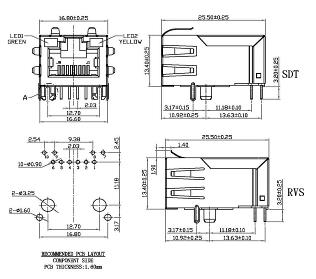

Drawings

| HOME | SO DDR 200P  |SO DDR 204P  | PCI |  PCI-E | DDR | RJ | SLOT | PIN HEADER | IC SOCKET | SMART CARD | CABLE(1) | CABLE(2) | CABLE(3) | POWER CABLE |ADAPTER |

廣 鎰 電 子 有 限 司

Kung Yi Eletronic Co., Ltd

Technical Data

Contact Us

地址:新北市三峽區介壽里光明路75巷22-1號

ADD:1F, No. 22-1, Lane75, Guang Ming Rd., Sansia Dist, New Taipei City 237, Taiwan

電話(TEL): 886-2-2674-5663

傳真(FAX): 886-2-2674-8697

電子郵件(Mail): sales@kyect.com.tw

MATERIALS



INSULATOR:GLASS FILLED POLYESTER UL94v-0

CONTACT:PHOSPHOR BRONZE T=0.35mm

PLATING:GOLD OVER NIKET

SHIELDING:0.2mm THICKNESS COPPER ALLOY

                    WITH NICKEL PLATED

OPERATING: 750 CYCLES MIN.

PCB RETENTION PRE-SOLDER: 1LB MIN



ELECTRICAL

VOLTAGE RATING: 150 VAC

CURRENT RATING: 1.5 AMP

INSULATION RESISTANCE: 1000 MEGOHMS

CONTACT RESISTANCE: 20 MILLIOHMS MAX

DIELECTRIC STRENGTH: 1000V AC RMS 60Hz. 1MN



ENVIRONMENTAL

TEMPERATURE RANGE:-40 TO +85

RELATIVE HUMIDITY: 90º~95%(40+/-2º)
