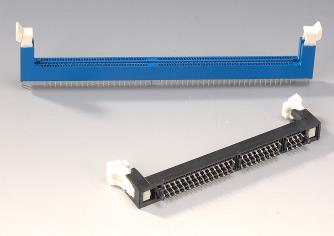

DIMM-100PIN

DIMM 180ºDIP 100PIN LCP 3.3V (Post Type)

CARD EDEG Pitch:1.27

Products summary

L/T:4~5Week

P/N:R-DIM-XXX-100-XXX

MATERIALS

INSULATOR:THRMOPLASTIC,  HIGH TEMP.,

                      UL94-0 RATED

CONTACT:COPPER ALLOY

CLIP: COPPER ALLOY

PLATING:MATING AREA - SELECTED GOLD OVER

                NICKEL.SOLDER AREA-TIN OVER NICKEL.



ELECTRICAL

VOLTAGE RATING: 250 VAC

CURRENT RATING: 1.0 AMP

INSULATION RESISTANCE: 1000 MEGOHMS MIN

CONTACT RESISTANCE: 30 MILLIOHMS MAX



MECHANICAL

CONTACT RETENTION: 0.5kgf min



INSETION FORCE: Mating Force 9kg Max

                                 Unmating Force 0.5kg Min

ENVIRONMENTAL

TEMPERATURE RANGE:-55º TO +85º

| HOME | SO DDR 200P  |SO DDR 204P  | PCI |  PCI-E | DDR | RJ | SLOT | PIN HEADER | IC SOCKET | SMART CARD | CABLE(1) | CABLE(2) | CABLE(3) | POWER CABLE |ADAPTER |

廣 鎰 電 子 有 限 司

Kung Yi Eletronic Co., Ltd

Contact Us

地址:新北市三峽區介壽里光明路75巷22-1號

ADD:1F, No. 22-1, Lane75, Guang Ming Rd., Sansia Dist, New Taipei City 237, Taiwan

電話(TEL): 886-2-2674-5663

傳真(FAX): 886-2-2674-8697

電子郵件(Mail): sales@kyect.com.tw

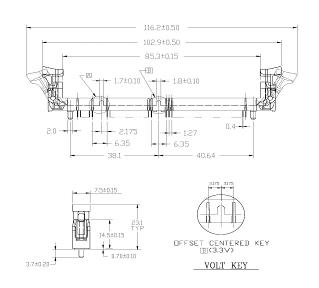

Drawings
