DIM&DDR R/A

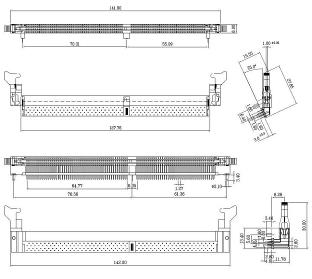

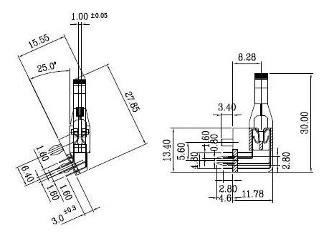

DIMM-168PIN (3.3V)90º & 25ºDIP

DDRI-184PIN (2.5V) 90º & 25ºDIP

DDRII-240PIN (1.8V) 90º & 25ºDIP

STD & RVS

Products summary

L/T:4~5Week

P/N:R-DXR-XXX-XXX-XXX

MATERIALS

INSULATOR:THRMOPLASTIC,  HIGH TEMP.,

                      UL94-0 RATED(LCP)

CONTACT:COPPER ALLOY

CLIP: COPPER ALLOY

PLATING: Gold over niket(40~60)or tin plating

Latch: Nylon 66 UL(94-V0)



ELECTRICAL

VOLTAGE RATING: 150 VAC

CURRENT RATING: 1.0 AMP

INSULATION RESISTANCE: 1000 MEGOHMS MIN

CONTACT RESISTANCE: 30 MILLIOHMS MAX



MECHANICAL

CONTACT RETENTION: 0.5kgf min



INSETION FORCE:

   Mating Force 65g Max. Per conact, initial

   Unmating Force 16g Min. Per conact initial



ENVIRONMENTAL

TEMPERATURE RANGE:-55º TO +105º
